Description

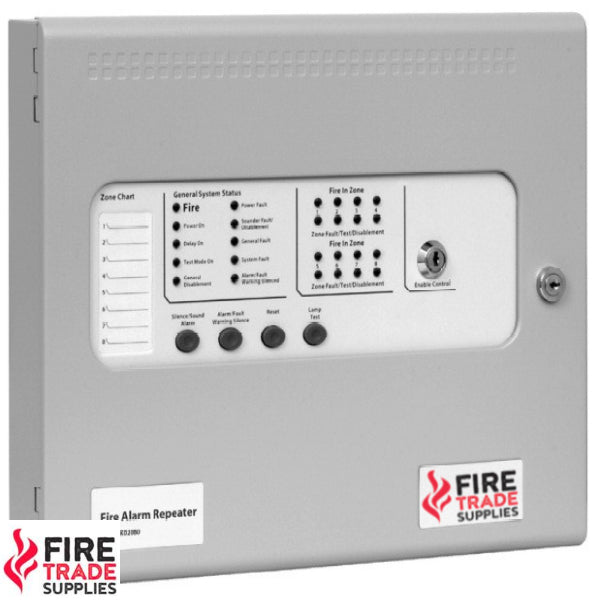

The SIGMA CP-R Repeater is compatible with all SIGMA CP Control panels
which have operating software version V2.2 or above.
Repeaters are available with 2, 4 or 8 zones and in mains powered (K Versions) or 24V powered (E Versions)
Mains powered repeaters require only a two core data cable from the main control panel. 2
4V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
Also available as a flush mounted unit - Part No: E01080F2
Features
Two wire serial connection
Up to 7 panels per system
230V AC or 24V DC powered versions
Full control over the main panel
Volt free fire and fault contact outputs.
Dimensions (mm): 385W x 310H x 60D
which have operating software version V2.2 or above.
Repeaters are available with 2, 4 or 8 zones and in mains powered (K Versions) or 24V powered (E Versions)
Mains powered repeaters require only a two core data cable from the main control panel. 2
4V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
Also available as a flush mounted unit - Part No: E01080F2
Features
Two wire serial connection
Up to 7 panels per system
230V AC or 24V DC powered versions
Full control over the main panel
Volt free fire and fault contact outputs.
Dimensions (mm): 385W x 310H x 60D
