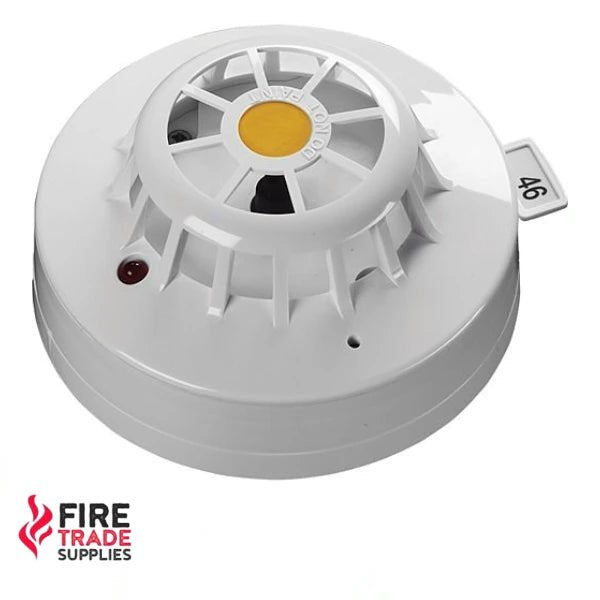

The XP95 heat detector has a low air-flow resistant case for good contact
Dimensions: 100mm x 42mm
between the sensing thermistor and the surrounding air.
Temperature is measured by a single thermistor network which gives a voltage output
proportional to the external air temperature.
The signal is processed and transmitted to the control equipment.
Detector Principle: Linear Approximation over temperature range 25°C to 90°C
Sensor: Single NTC thermistor
Supply wiring: Two wire supply, polarity insensitive
Supply Voltage: 17 to 28 volts dc
Alarm Indicator: Red LED
