Description

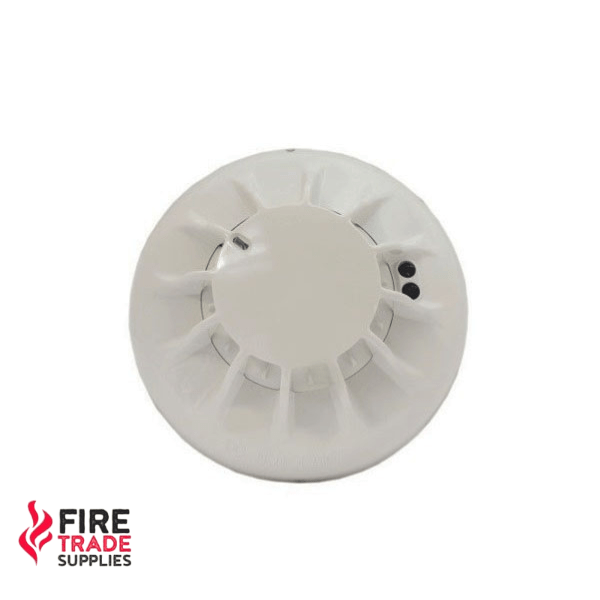

Tyco Zettler MX 830H Heat Detector (516.830.053)
The Tyco Zettler MX 830H Heat Detector (516.830.053) is a high-performance addressable heat detector designed for use with Zettler MX fire alarm systems.
Built on Tyco’s proven MX technology, this intelligent detector delivers accurate temperature-based fire detection with exceptional stability and low maintenance requirements — ideal for commercial, industrial, and residential environments.
Key Features
-
Part Number: 516.830.053
-
Model: MX 830H
-
Type: Addressable Heat Detector
-
Manufacturer: Tyco Zettler
-
Compatible Systems: MX addressable fire alarm control panels
-
Advanced Thermal Sensing: Responds rapidly to temperature rises caused by fires
-
Digital MX Protocol: Ensures reliable communication and system integrity
-
In-Built Microprocessor: Provides intelligent signal processing and drift compensation
-
Easy Maintenance: Self-monitoring and automatic sensitivity adjustment
-
Optional Isolator Base: Protects against short circuits and maintains loop integrity
Reliable Heat Detection Technology
The Zettler MX 830H uses a sophisticated thermal sensor to measure air temperature changes and detect fires in areas where smoke detectors may cause false alarms — such as kitchens, boiler rooms, workshops, and dusty industrial spaces.
Its intelligent MX digital protocol ensures precise temperature readings and quick response times, while the detector’s self-calibrating function guarantees consistent long-term performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Operating Voltage | 20V – 40V DC |
| Operating Current | 300μA (typical) |
| Detection Principle | Thermistor-based, rate-of-rise and fixed temperature |
| Operating Temperature | -10°C to +55°C |
| Addressing Method | Digital via MX protocol |
| Compatible Bases | MB800, MB800A, MB-SMB800 (with or without isolator) |
| Standards Compliance | EN 54-5 & EN 54-17 |
| Colour | White |
| Material | Flame-retardant ABS plastic |
| Dimensions (Dia x H) | 100mm x 48mm |
Compatibility
The MX 830H works seamlessly with the entire Zettler MX addressable range, including:
-
MX control panels
-
MX call points (e.g. MX CP830 Outdoor Call Point with Isolator)
-
Other Tyco Zettler addressable detectors and modules
Typical Applications
-
Kitchens and catering areas
-
Plant rooms and workshops
-
Warehouses and industrial buildings
-
Hotels, offices, and retail spaces
Why Choose the MX 830H
The Tyco Zettler MX 830H Heat Detector offers a robust and dependable fire detection solution, designed to minimise false alarms while ensuring early and accurate detection of genuine heat sources.
Its intelligent MX protocol, combined with easy installation and low maintenance, makes it a trusted choice for installers and system designers across the UK.
