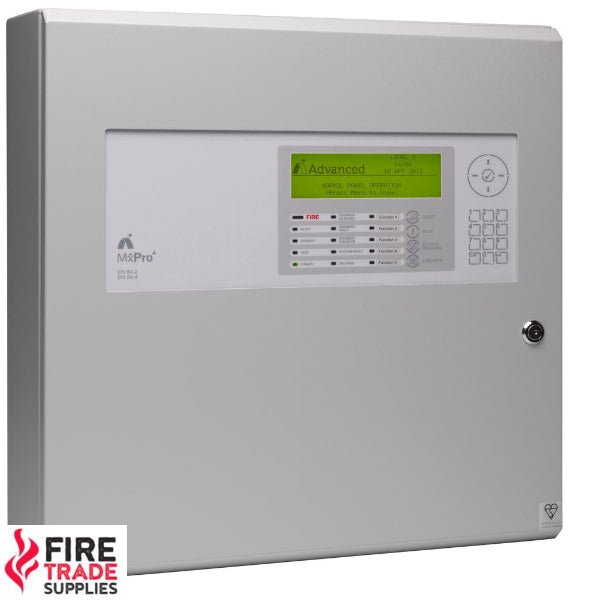

MX-4404 Advanced 4 Loop 20 Zone Analogue Addressable with 4 Tested Loop Cards
MX-4404 Advanced 4 Loop 20 Zone Analogue Addressable with 4 Tested Loop Cards
The control panel consists of a simple to use LCD menu driven graphical interface,
dual, flashbased microprocessor technology driven by a 5Amp PSU and charger
Approved to EN52 parts 2 & 4.
Dedicated system navigation keys makes learning this control panel user friendly
as well as Installer friendly due to the uncomplicated, trouble free, Commisioning and Fault
Features
Fully expandable from 1 to 4 loops via common plug in loop driver boards
Full support of Apollo (Discovery, Xplorer, S90 & XP95) and Hochiki ESP protocols
Advanced graphical LCD user interface with up to 1000 fire zones as standard, allowing full EN54 compliance without additional hardware or LED indication
5 Amp power supply and charger to EN54 part 4
Optional on-board or remote printer
Dual, flash based, microprocessor technology with on-board real time clock
Dedicated RS232 serial port for direct PC or modem connection
Installer friendly "Auto Learn" and "Loop Detection" facility for trouble-free, commissioning.
Fully on-site programmable via on-board alphanumeric keypad or PC configuration tools
Flash memory and the advanced graphical display enables the panels to be configured
to operate in virtually any language with any character set and allows the installer's logo and company details to be applied to the LCD display
Robust, removable equipment chassis with plug-in connectors for simple fixing and cable termination
When connected to the fault tolerant Ad-NeT network, the panel operates as a true peer-to-peer interface
(with up to 1000 shared zones) with full cross panel reporting, control and cause and effect functionality
Available with deep enclosure, part number Mx-4404/D.
