Description

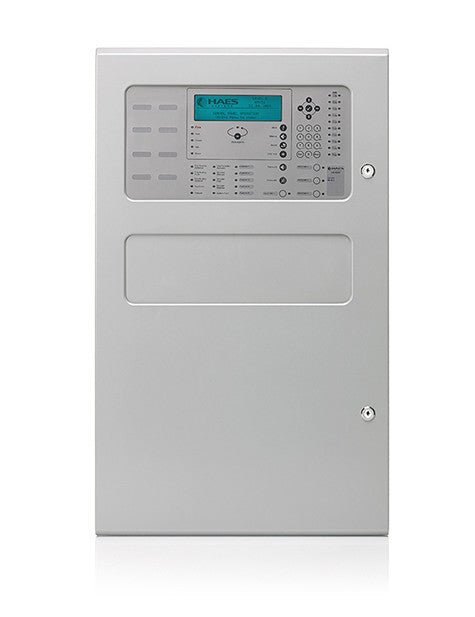

Manufactured by Haes, this Haes Elan 2 Loop Addressable Control Panel Extended Enclosure 2-8 loop HS-5802 is the next generation of analogue addressable fire alarm control panels that are fully compliant with EN54 part 2, 4 and 13 and CE marked under the Construction Product Regulations (CPR).
The panels have been designed to be flexible and powerful with an intuitive user interface. Each panel has a high resolution LCD display with a high-tactile feedback membrane keypad. This combination provides a concise menu-based, high resolution, graphical user interface with simple select and click programming to aid engineering configuration and end-user operation.
Simply adding a network card allows the panels to communicate with any other Elan fire panel, current range of Advanced Electronics panels, remote terminal, or network peripheral such as 'ipGateway' or BMS/Graphical Interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.
Haes Elan 2 Loop Addressable Control Panel Extended Enclosure 2-8 loop HS-5802 product specifications / product detail are as follows:
Manufacturer: Haes
Part Number: HS-5802
Benefits / Details of Haes Elan 2 Loop Addressable Control Panel Extended Enclosure 2-8 loop HS-5802 include:
- Available from 1 - 8 loops
- Open protocol system
- Large graphical LCD user interface
- Powerful cause and effects programming
- True peer-to-peer networking up to 32 std or 200 fault tolerant nodes
- Full support of Apollo XP95/Discovery & Hochiki ESP protocols
- On board printer options
- Please call to discuss pricing
