Description

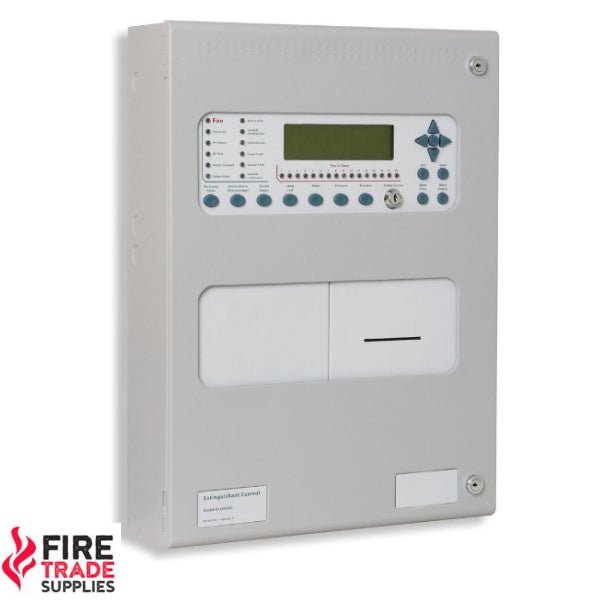

Manufactured by Kentec, this Kentec Syncro As Analogue Addressable Fire Control Panel 2 Loop Hochiki ESP Protocol Large Enclosure H80162M3P is a Syncro AS is the latest powerful and versatile single or two loop Analogue Addressable Fire Control Panel from Kentec. The AS Syncro can be field upgraded to two loops with an additional loop card.
Syncro multi-loop fire panel users will immediately be familiar with the features and functionality of the Syncro AS panel. It has the same display, help screens, menus, configuration options and controls as the Syncro panel range with all of the power and flexibility that comes from compatibility with other components of the multi-loop Syncro system and peripherals.
Syncro AS fully supports all devices from the leading, open protocol detector manufactures and can be supplied with Apollo (S90/XP95/Discovery) Argus Spectrum (Vega) or Hochiki (ESP) loop drivers, all capable of providing up to 400 milliamps of loop current for the most demanding applications.
An integral 3 Amp power supply and temperature compensated battery charger provides ample power for the two, 1 Amp rated sounder outputs, loop powered sounders and other devices.
Kentec Syncro As Analogue Addressable Fire Control Panel 2 Loop Hochiki ESP Protocol Large Enclosure H80162M3P product specifications / product detail are as follows:
Manufacturer: Kentec
Part Number: H80162M3P
Benefits / Details of Kentec Syncro As Analogue Addressable Fire Control Panel 2 Loop Hochiki ESP Protocol Large Enclosure H80162M3P include:
- M3P Enclosure Size - 385 x 520 x 110 (mm)
- Max Battery Size (M2) 2 X 12V 9Amp SLA
- Number of Loops - 2
- Zone Indicators - 16
- Software Zones - 500
- Device Text Assignment - 40 Characters per sub-address
- Max Loop Current - 400 mA
- Remote Control Input Types - Fault, Reset, Alert, Evacuate, Silence
- Enable Key - Activate Controls
