Apollo Series 65 smoke & heat detector range are a direct replacment for the earlier Series 60 devices.
Series 65 detectors have a wide voltage range (9-33 volt DC)
and can be integrated on to security systems when used with the 12 volt relay base (45681-508)
The heat detector operates by using a matched pair of thermistors to sense heat.
One thermistor is exposed to the ambient temperature, the other is sealed. In normal conditions,
the two thermistors register similar temperatures, but, on the development of a fire,
the temperature recorded by the exposed thermistor will increase rapidly,
resulting in an imbalance of the thermistors and causing the detector to change to the alarm state.

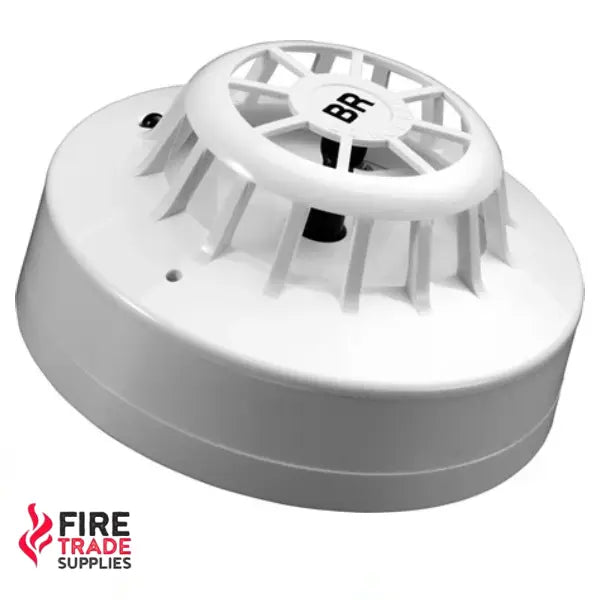

A1R, BR and CR are Rate of Rise detectors, designed to detect a fire as the temperature increases,
but they also have a fixed upper limit at which the detector will go into alarm
if the rate of temperature increase has been too slow to trigger the detector earlier.
CS detector is a fixed heat detector which only changes to the alarm state at a preset temperature.
