Description

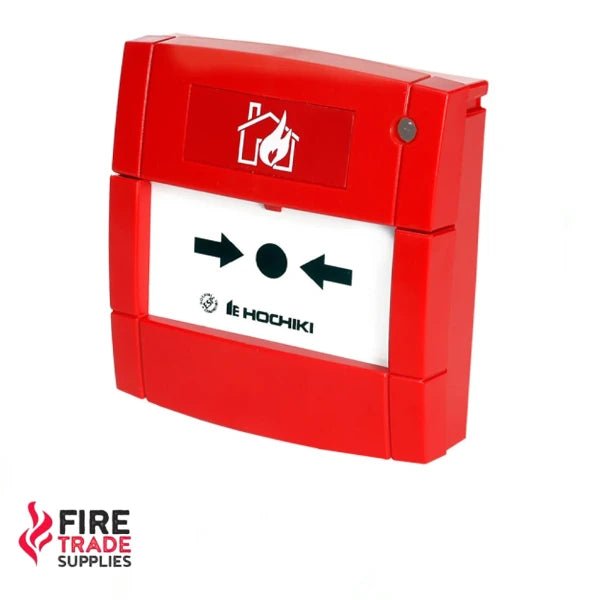

Hochiki Call point - HCP-E(SCI)
| Hochiki Call Point Data Sheet |
 |
Technical Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 17 – 41 VDC |
| Quiescent Current | 250 µA (typical) |
| Alarm Current | 5 mA (typical) |
| Operating Temp. Range | -10°C to +50°C |
| Storage Temp. Range | -30°C to +70°C |
| Humidity | Up to 95% RH (non-condensing) |
| Dimensions (Flush) | 89 x 93 x 27.5 mm |
| Dimensions (Surface) | 89 x 93 x 59.5 mm |
| Weight | 110 g (flush), 161 g (with surface box) |
| IP Rating | IP24 |
| Housing Material | Red Polyphenylene Oxide |
HCP-E(SCI) Hochiki Call point Product Overview:
The Hochiki HCP-E(SCI) is a premium addressable Hochiki call point designed for swift and reliable manual fire alarm activation.
Built for use within Hochiki’s ESP analogue addressable systems, it includes an integrated short-circuit isolator, ensuring the loop remains operational even when faults occur.
Featuring a rugged red casing and compliant with EN54-11 and EN54-17 standards, this call point is ideal for demanding commercial and industrial environments where safety and reliability are paramount.
Key Features at a Glance
-
Fully addressable Hochiki call point – designed for use with Hochiki ESP protocol systems.
-
Built-in short-circuit isolator – protects the integrity of the loop by isolating faults.
-
EN54 compliant resettable element – durable plastic trigger that resets with a test key.
-
Bi-colour LED indicator – red for alarm activation, amber for isolator status.
-
Programmable via TCH-B200 Handheld Programmer – eliminates the need for dip switches.
-
Flush or surface mounting options – surface install requires the SR Mounting Box.
-
Fast installation & low current draw – saves time and energy on-site.
Perfect for:
-
Office buildings
-
Hospitals and care homes
-
Factories and warehouses
-
Schools and universities
-
Shopping centres and leisure venues
Wherever a manual Hochiki call point is required to provide dependable fire alarm activation and system protection, the HCP-E(SCI) is the right fit.
Related Hochiki Accessories
Built-In Reliability, Hochiki Performance
Engineered for long-term use in real-world fire alarm systems, this Hochiki call point not only meets global safety standards but also offers easy maintenance, clear indication, and rock-solid performance under pressure.
Add the HCP-E(SCI) to your addressable fire system today and ensure full manual call point capability with built-in loop protection — all from the trusted name in life safety: Hochiki.
Order the Hochiki HCP-E(SCI) from Fire Trade Supplies – the UK’s leading supplier of Hochiki addressable fire alarm equipment.
